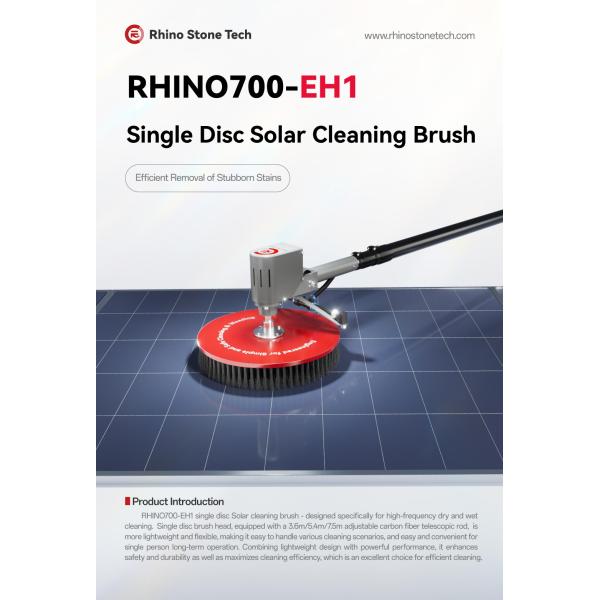

Water Washing Single Disc Solar Panel Cleaning PV Array Roof 3.6m 5.4m 7.5m Cleaner
---------------------------

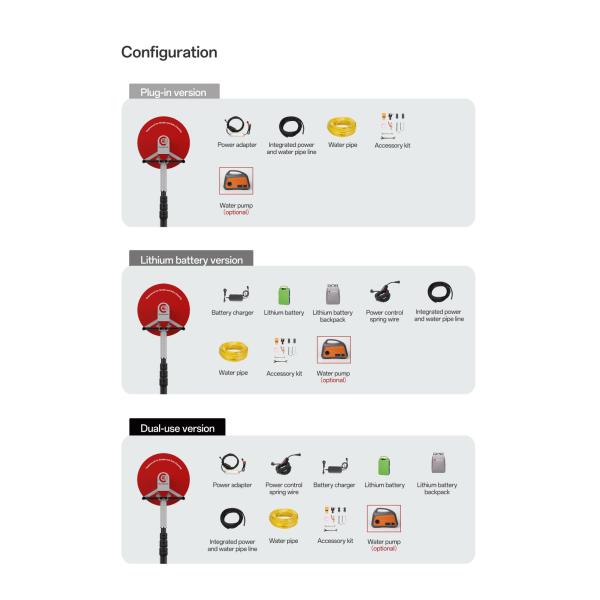

We offer up three options for our Cleaning Brush:
1.Plug-in Model
2.Lithium Battery Model
3.Dual-functional Model (integrating the two options referenced earlier)
We provide our clients with telescopic poles constructed from carbon fiber and aluminum alloy. This structure not only delivers top-tier performance but also boasts impressive strength and long-lasting sturdiness.
To fit different solar panel setups, telescopic poles come in various lengths, including 3.6 meters, 5.4 meters, and 7.5 meters.
Our carbon fiber and aluminum alloy telescopic poles are suitable for a wide range of scenarios, particularly when it comes to solar panel cleaning. We can modify the specifications to meet your specific needs, ensuring high-performance outcomes for your projects.
Features:
1.Weight: Its lightweight structure minimizes user fatigue to the greatest degree, making it ideal for extended working hours.
2.Material: The handle is made of high-quality carbon fiber. This material not only guarantees strong rigidity but also keeps the weight extremely light.
3.Efficiency: The rotating brush head design enables quick removal of stubborn stains. Additionally, the anti-static property of the brush bristles helps reduce secondary dust pollution.
4.Length & Extension: It features a fully adjustable length, and the smooth telescopic mechanism not only facilitates easy access to different areas but also saves space during storage.
5.Durability: The carbon fiber structure has anti-static characteristics and offers effective resistance to corrosion, UV radiation, and harsh environmental conditions.
6.Design: The product adopts a modular design, allowing you to replace the brush head in a short time.
5 Key Advantages
1.Overall Lightweight Design:
The single-disc structure helps reduce the product’s size and weight. Due to the machine’s overall lightweight feature, it is easier to operate, labor-saving, and flexible—all of which enable it to handle complex photovoltaic array layouts without difficulty. It is an excellent choice for those pursuing the lightest possible product and flexible operation.
2.IP65-Certified Brushless Motor:
We carefully select brushless motors with an IP65 protection rating. The product uses a fully encapsulated solution with thermal conductive epoxy resin, which balances heat dissipation and water resistance, thus remaining unaffected by harsh working environments. Compared with brushed motors, it operates more stably and has a service life 3-5 times longer, significantly lowering maintenance costs.
3.Dual Anti-Static Protection:
Anti-static nylon bristles are paired with anti-static carbon fiber telescopic poles. This dual static removal system can effectively prevent static buildup, reduce the risk of electric discharge, and ensure worker safety. It is particularly well-suited for dry and dusty environments.
(There are 2 material options for the pole: carbon fiber/aluminum alloy. This feature is only applicable to carbon fiber materials.)
4.Hassle-Free Ultra-Long Battery Life:
The lithium battery model is equipped with a large-capacity lithium battery. Once fully charged, it can operate for up to 6 hours, making it an outstanding option for long-term continuous work in areas without power supply. Furthermore, it can be connected to the main power supply for non-stop operation, completely resolving power-related concerns.
5.Dual-Mode High-Efficiency Cleaning:
The dry cleaning mode efficiently removes floating dust and sand particles. As for the wet cleaning mode, it can be combined with multiple water supply solutions—and this enables it to adapt well to complex environments such as mountainous areas and deserts, as well as meet the high cleaning demands of various scenarios.

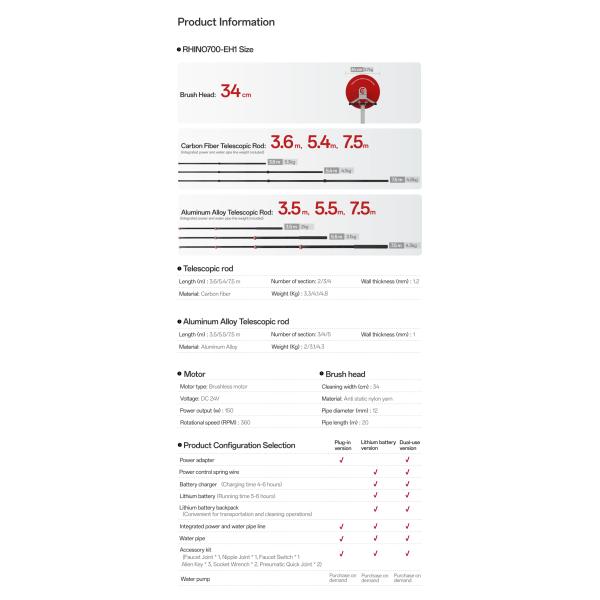

| Product Name | Single Disc Solar Cleaning Brush RHINO700-EH1 |
| Parameter Item | Product Model |
| Plug-in Version | Lithium Battery Version | Dual-use Version |
| Power Supply | AC95V~264V;DC24V | Lithium Battery | AC95V~264V;DC24V
or Lithium Battery |
| Motor Type | Brushless Motor |
| Motor Speed | 360RPM |
| Motor Voltage | DC 24V |
| Telescopic Rod Material | Carbon Fiber | Aluminum Alloy |
| Telescopic Rod Wall Thickness | 1.2mm | 1mm |
| Number of Section | 3.6m | 2 | 3.6m | 3 |
| 5.4m | 3 | 5.4m | 4 |
| 7.5m | 4 | 7.5m | 5 |
| Water Pipe Length | 20m (can be customized) |
| Brush Hair Material | Anti-Static Nylon Yarn |
| Cleaning Width | 340mm |
| Lithium Battery Voltage | 24V |
| Lithium Battery Capacity | 30AH |
| Lithium Battery Charging Time | 4~6H |
| Lithium Battery Life Per Full Charge | 5~6H |
